Mitsubishi Lancer EVO X Front Aluminium Wishbones set

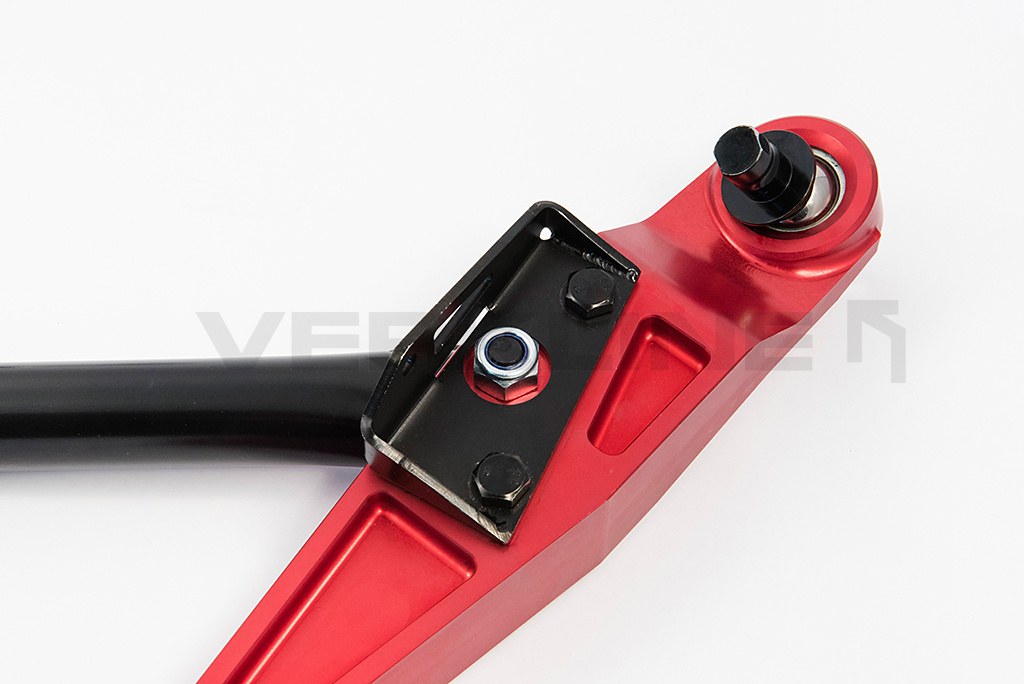

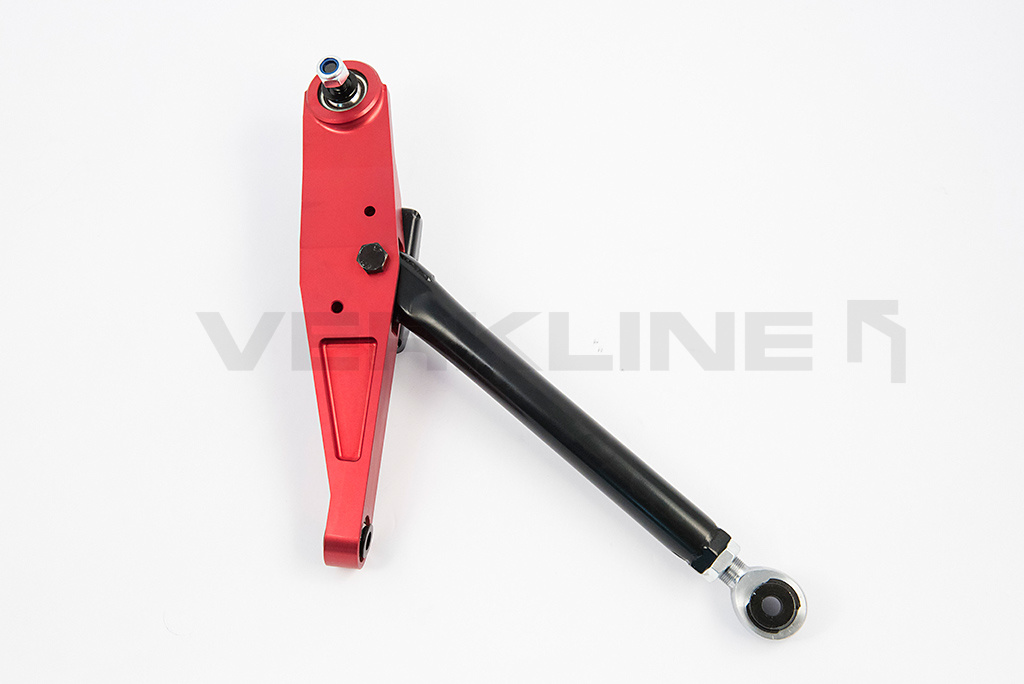

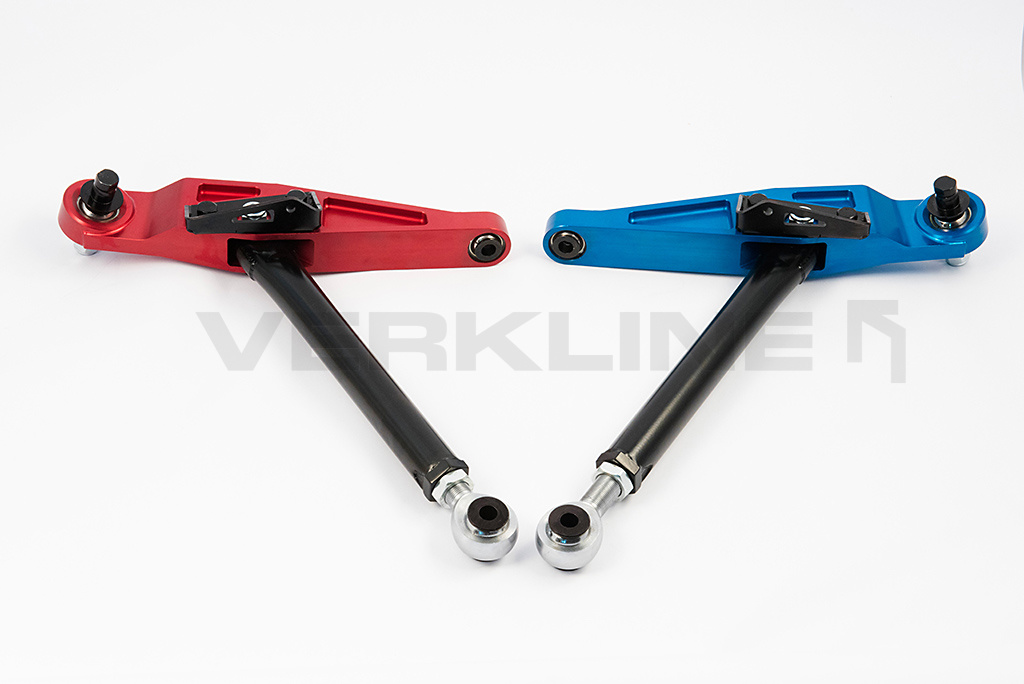

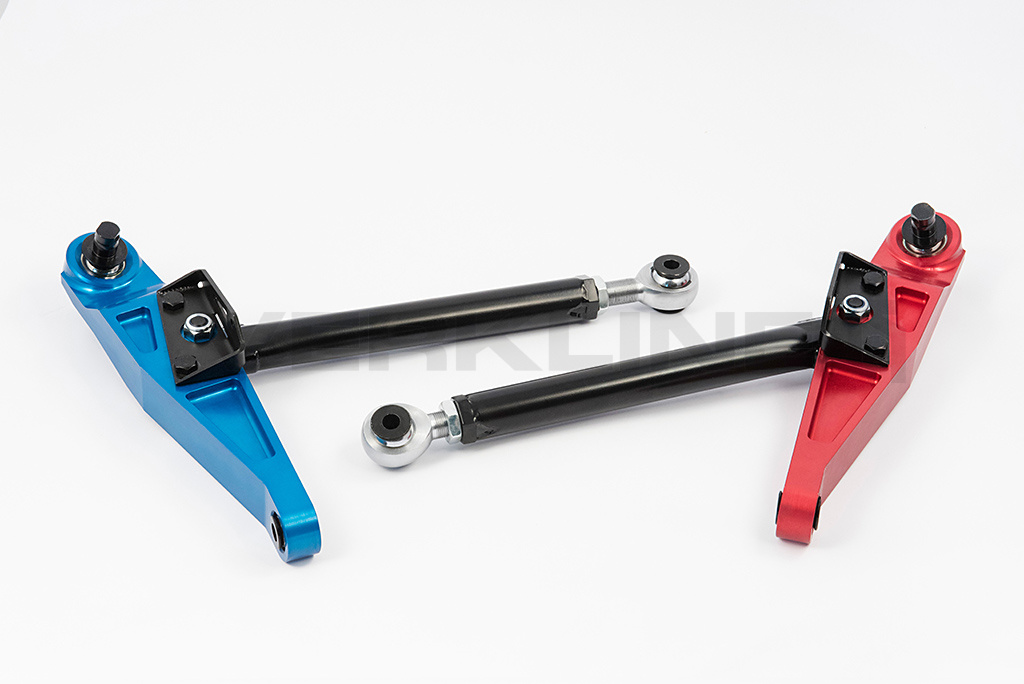

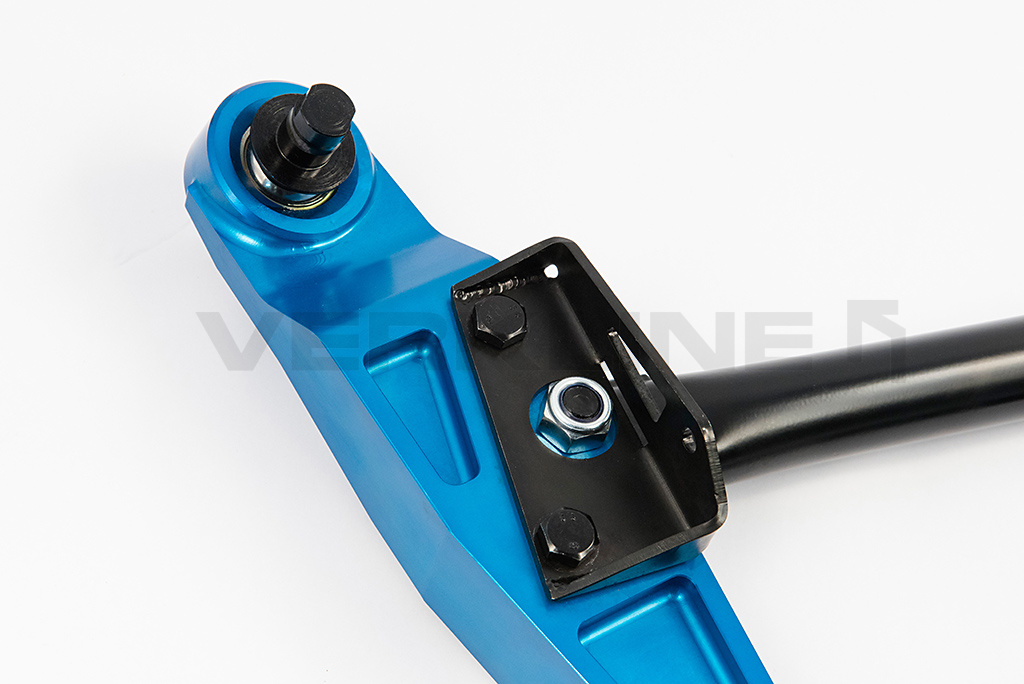

The kit consists of all the parts visible on the pictures:
- Front light weight aluminium wishbones (left + right)
- Two pins for uprighs
- Two M22 motorsport rod ends
- Two M22 half size screws
- Four motorsport bearings
- Two arm antiroll brackets
- Spacer sleeves for assemble of the rod ends in the front subframe
- Six 10.9 bolts used
- Four 10.9 screws used
Features:
- R4 spec front suspension arm
- Comes preassembled ready for fitment in the car
- Allow increased caster and camber adjustment
- R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
- Same rod end suppler as for original R4 kit
- Greater strength over OEM wishbones
- Wishbones are anodized in red and blue colors
Technical details
- Manufactured from 7075 aluminium on 5 axis CNC
- T45 pipiing used
- All pins made from C45 and Galvanized Silver
- Tig Welded
- Full 3D CAD designed
- FEA Tested and additional reinforcement to the original design was made
parts used:
Left-hand is red ( CE114-105 ) - 1 pcs |
|
pcs |
1 |
CE114-165 |
Front arm LH |
1 |
2 |
CE114-27 |
Front arm rear rod assy |
1 |
3 |
Konelock-nut-M14x2 |
Konelock nut M14x2 |
1 |
4 |
CE114-173 |
ARB mounting plate front arm |
1 |
5 |
|
Front arm pin |
1 |
6 |
RG18MTE.35 |
Rodobal bearing |
1 |
7 |
CE114-152 |
Front Arm adaptor bushing |
1 |
8 |
Seeger-SB35 |
Seeger SB35 |
1 |
9 |
Seeger-SB42 |
Seeger SB42 |
1 |
10 |
|
Front arm higher pin adapter |
1 |
11 |
NL14spss-254-Nord-Lock |
NL14spss-254-Nord Lock |
1 |
12 |
RM22XE.C0 |
Rodobal Rod-end M22x1,5 |
1 |
13 |
CE114-202 |
Nut M22x1.5 |
1 |
14 |
Hexagon-head-bolt-ISO-8676-M10x1.25x25 |
Hexagon head bolt ISO 8676 M10x1.25x25 |
2 |
15 |
CE114-155 |
Front arm rear rod ISO 8765 - M14 |
1 |
16 |
CE114-72 |
Front arm RM22XE adapter |
2 |
17 |
RG22SE42C0 |
Rodoball Uniball High Misalignament |
1 |
18 |
|
Front arm lower pin adapter lower |
1 |
19 |
Washer-UNI-8840-DIN-137-B10 |
Washer UNI 8840 - DIN 137 - B10 |
2 |
20 |
Washer-UNI-8840-DIN-137-B14 |
Washer UNI 8840 - DIN 137 - B14 |
1 |
Right-hand is blue ( CE114-108 ) - 1 pcs |
|
pcs |
1 |
CE114-26 |
Front arm RH |
1 |
2 |
CE114-27 |
Front arm rear rod assy |
1 |
3 |
Konelock-nut-M14x2 |
Konelock nut M14x2 |
1 |
4 |
CE114-51 |
ARB mounting plate front arm |
1 |
5 |
CE114-65 |
Front arm pin |
1 |
6 |
RG18MTE.35 |
Rodobal bearing |
1 |
7 |
CE114-152 |
Front Arm adaptor bushing |
1 |
8 |
Seeger-SB35 |
Seeger SB35 |
1 |
9 |
Seeger-SB42 |
Seeger SB42 |
1 |
10 |
|
Front arm higher pin adapter |
1 |
11 |
NL14spss-254-Nord-Lock |
NL14spss-254-Nord Lock |
1 |
12 |
RM22XE.C0 |
Rodobal Rod-end M22x1,5 |
1 |
13 |
CE114-202 |
Nut M22x1.5 |
2 |
14 |
Hexagon-head-bolt-ISO-8676-M10x1.25x25 |
Hexagon head bolt ISO 8676 M10x1.25x25 |
1 |
15 |
CE114-155 |
Front arm rear rod ISO 8765 - M14 |
2 |
16 |
CE114-72 |
Front arm RM22XE adapter |
1 |
17 |
RG22SE42C0 |
Rodoball Uniball High Misalignament |
1 |
18 |
|
Front arm lower pin adapter lower |
1 |
19 |
Washer-UNI-8840-DIN-137-B10 |
Washer UNI 8840 - DIN 137 - B10 |
1 |
20 |
Washer-UNI-8840-DIN-137-B14 |
Washer UNI 8840 - DIN 137 - B14 |
1 |
