Mitsubishi Lancer EVO IV-IX - Rear Turbular Subframe

Mitsubishi Lancer EVO IV-IX - Rear Lightweight Tubular Subframe

The kit consists of:

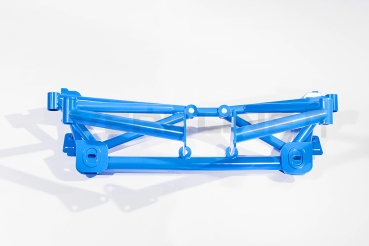

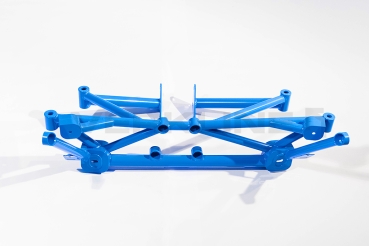

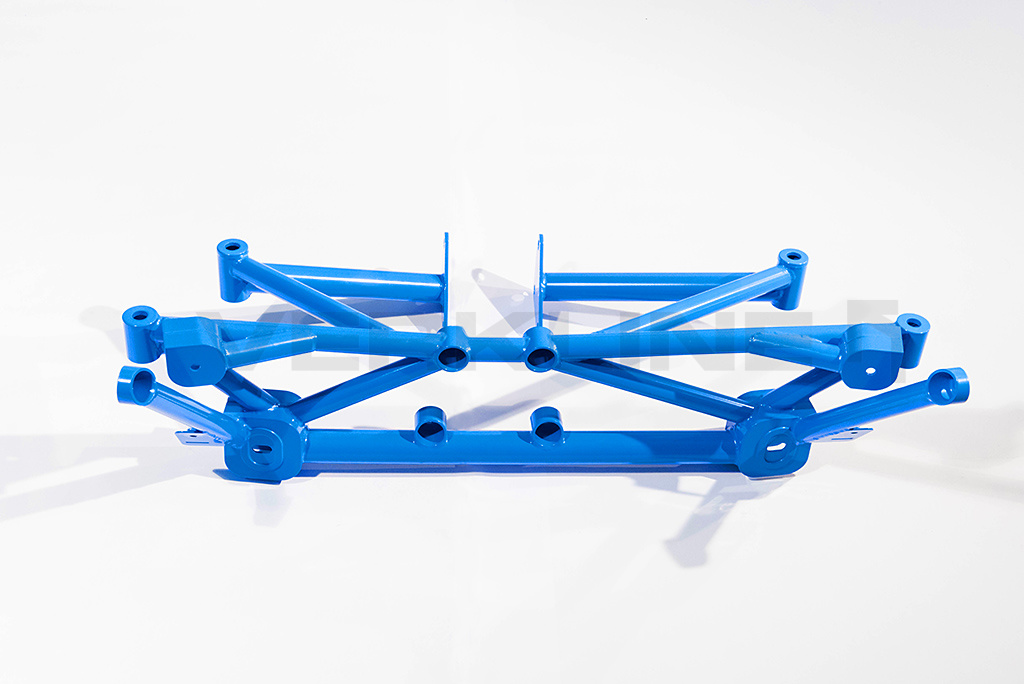

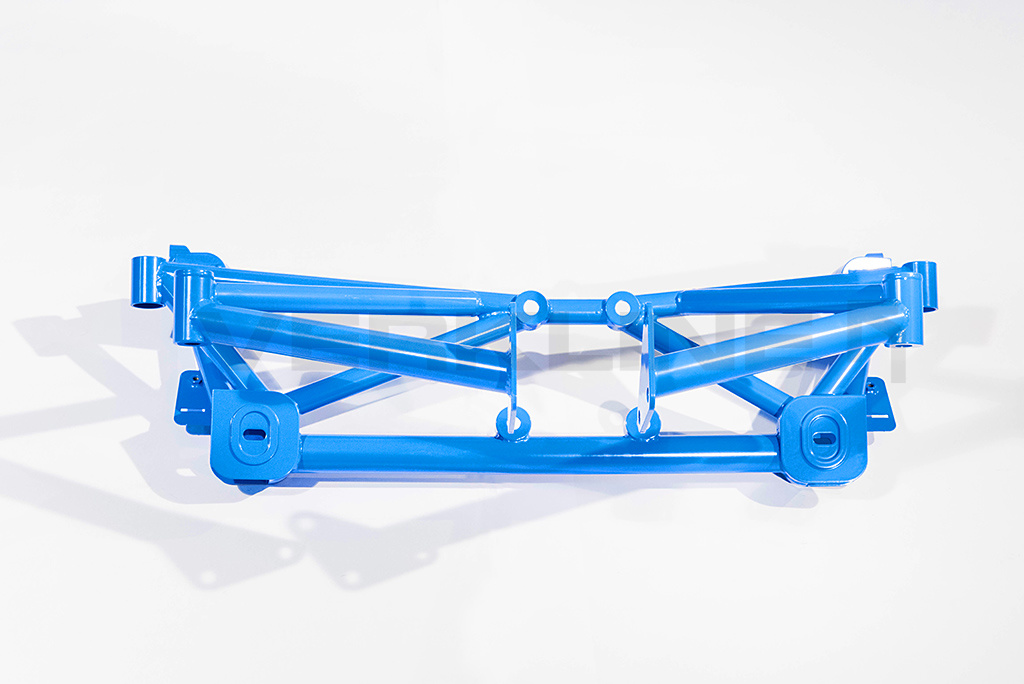

- Rear Light weight Tubular Subframe
- Rear Anti-roll Bar mounts for the subframe

Technical details
- Mountings to the chassis using are on standard attachment points
- Full 3D CAD designed
- FEA Tested and additional reinforcement to the original design was made
- Manufactured from T45 tubing, C45 milled steel and S355 sheet steel
- TIG Welded

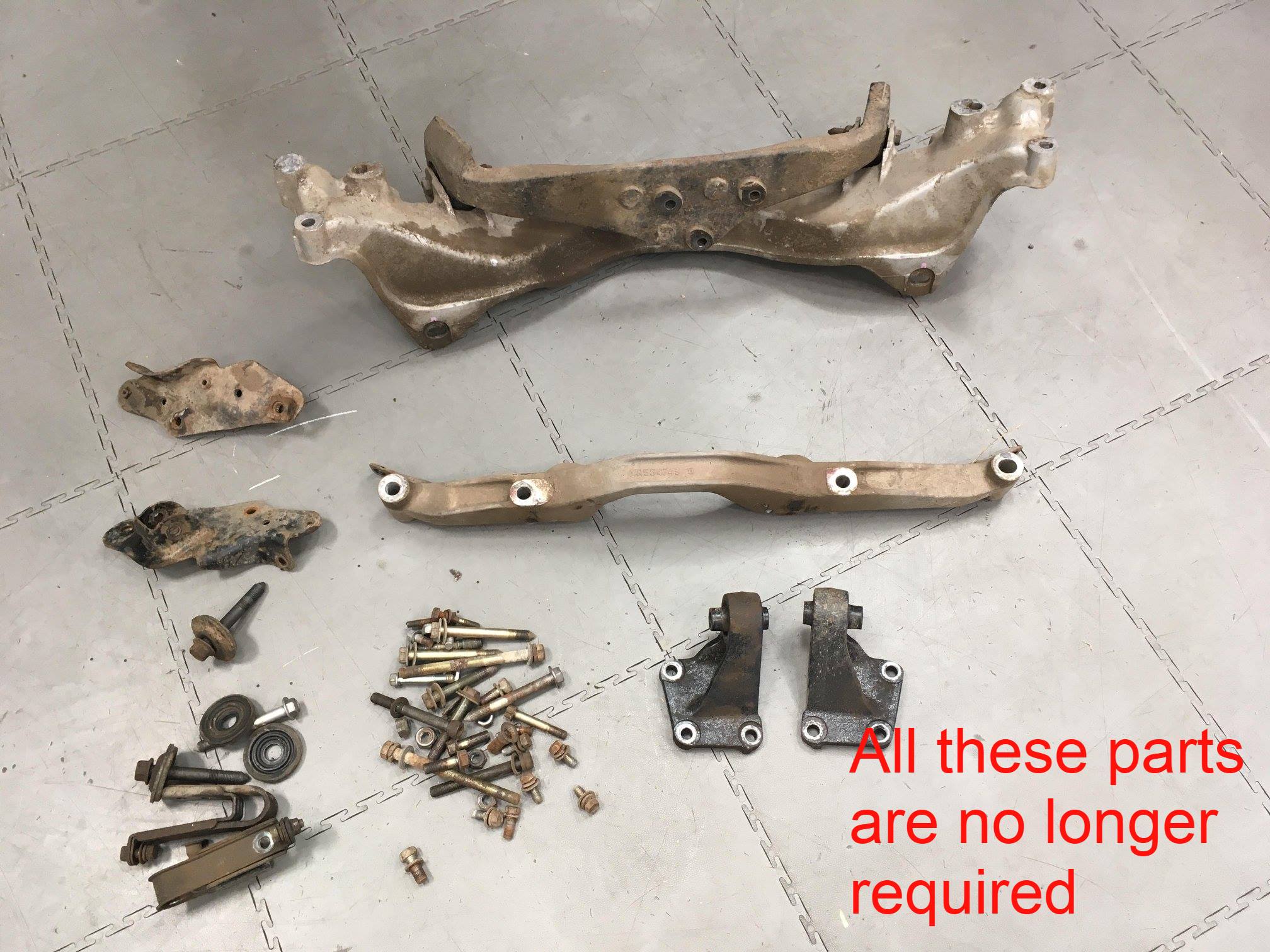

Rear tubular subframes provide saving of 20 kg on the car over same OEM components. The subframe weights 9,40 kg. Designed for RS rear axle.

Subframes are powder painted in black as standard. Other color options available at +50 euro extra at customer request.

Notice: Some small rework near the fuel tank may be required to mount the subframe. Watch out, as it may be necessary to remove the left side OEM fuel tank cover (depending on the car version you have).
