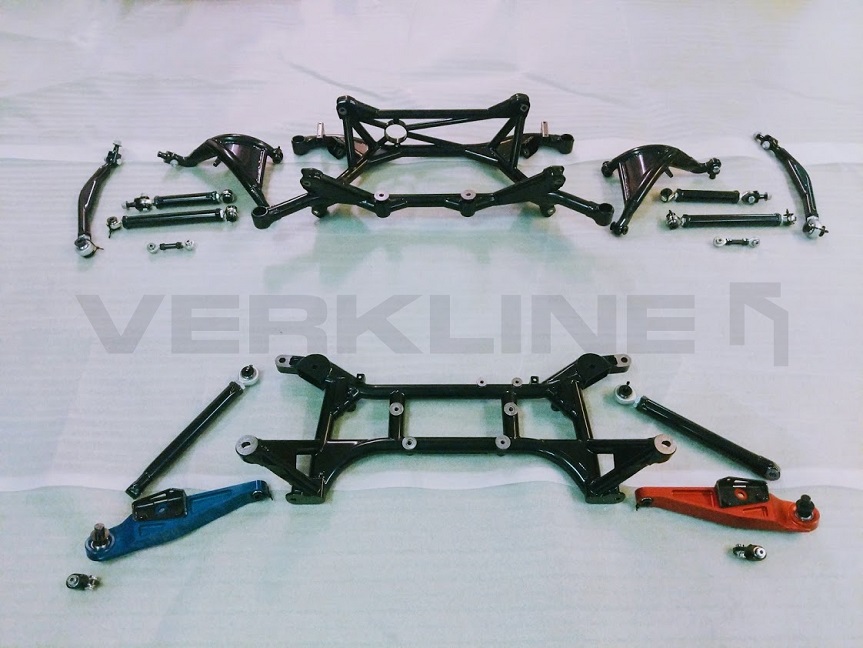

Mitsubishi Lancer EVO X Complete R4 Suspension kit
Kit consists of (full list on the botom of the page):
- Front Tubular Subframe - 1 pcs
- Rear Tubular Subframe - 1 pcs
- Front Aluminium Arms (LH + RH) with front Outrigger Arms - 2 pcs
- Front ARB Links - 2 pcs
- Rear Longitudinal Arms - 2 pcs
- Rear Toe Arms - 2 pcs
- Rear Camber Arms - 2 pcs
- Rear upper arms LH+RH - 2 pcs
- Rear ARB Links - 2 pcs
Kit comes with preassembled bearings and rod-ends like on the pictures.
Features:
- developed based on 3D scan
- full CAD designed and FEA tested
- manufactured from T45 tubbing, milled parts from C45 metal and plates form S355 steel
- tubing CNC bent and laser cut
- front arms manufactured from 7075 billet aluminum, anodized
- TIG Welded with special weld wire for T45 tubing
- bearings / rod-ends - same as used in original Rally Art MML R4 kit
Some of the cars that have our suspension components:
- Mariusz Zapała (Fiesta Proto)
- Damian Łata (Fiesta Proto)
- Filip Nivette (Fiesta Proto)
- Michał "Frodo" Ratajczyk (Evo X)
- Heuvel Motorsport (Evo X)
- Hyundai i20
Parts list used in our kit:
Front subframe ( CE114-110 ) - 1 pcs
Rear subframe (CE114-119 ) - 1 pcs
- Front Tubular Subframe - 1 pcs
- Rear Tubular Subframe - 1 pcs
- Front Aluminium Arms (LH + RH) with front Outrigger Arms - 2 pcs
- Front ARB Links - 2 pcs
- Rear Longitudinal Arms - 2 pcs
- Rear Toe Arms - 2 pcs
- Rear Camber Arms - 2 pcs
- Rear upper arms LH+RH - 2 pcs
- Rear ARB Links - 2 pcs
Kit comes with preassembled bearings and rod-ends like on the pictures.
Features:
- developed based on 3D scan
- full CAD designed and FEA tested
- manufactured from T45 tubbing, milled parts from C45 metal and plates form S355 steel
- tubing CNC bent and laser cut
- front arms manufactured from 7075 billet aluminum, anodized
- TIG Welded with special weld wire for T45 tubing
- bearings / rod-ends - same as used in original Rally Art MML R4 kit
Some of the cars that have our suspension components:
- Mariusz Zapała (Fiesta Proto)
- Damian Łata (Fiesta Proto)
- Filip Nivette (Fiesta Proto)
- Michał "Frodo" Ratajczyk (Evo X)
- Heuvel Motorsport (Evo X)
- Hyundai i20
Parts list used in our kit:
| Left-hand is red ( CE114-105 ) - 1 pcs | |||
| pcs | |||
| 1 | CE114-165 | Front arm LH | 1 |
| 2 | CE114-27 | Front arm rear rod assy | 1 |
| 3 | Konelock-nut-M14x2 | Konelock nut M14x2 | 1 |
| 4 | CE114-173 | ARB mounting plate front arm | 1 |
| 5 | Front arm pin | 1 | |
| 6 | RG18MTE.35 | Rodobal bearing | 1 |
| 7 | CE114-152 | Front Arm adaptor bushing | 1 |
| 8 | Seeger-SB35 | Seeger SB35 | 1 |
| 9 | Seeger-SB42 | Seeger SB42 | 1 |
| 10 | Front arm higher pin adapter | 1 | |
| 11 | NL14spss-254-Nord-Lock | NL14spss-254-Nord Lock | 1 |
| 12 | RM22XE.C0 | Rodobal Rod-end M22x1,5 | 1 |
| 13 | CE114-202 | Nut M22x1.5 | 1 |
| 14 | Hexagon-head-bolt-ISO-8676-M10x1.25x25 | Hexagon head bolt ISO 8676 M10x1.25x25 | 2 |
| 15 | CE114-155 | Front arm rear rod ISO 8765 - M14 | 1 |
| 16 | CE114-72 | Front arm RM22XE adapter | 2 |
| 17 | RG22SE42C0 | Rodoball Uniball High Misalignament | 1 |
| 18 | Front arm lower pin adapter lower | 1 | |
| 19 | Washer-UNI-8840-DIN-137-B10 | Washer UNI 8840 - DIN 137 - B10 | 2 |
| 20 | Washer-UNI-8840-DIN-137-B14 | Washer UNI 8840 - DIN 137 - B14 | 1 |
| Right-hand is blue ( CE114-108 ) - 1 pcs | |||
| pcs | |||
| 1 | CE114-26 | Front arm RH | 1 |
| 2 | CE114-27 | Front arm rear rod assy | 1 |
| 3 | Konelock-nut-M14x2 | Konelock nut M14x2 | 1 |
| 4 | CE114-51 | ARB mounting plate front arm | 1 |
| 5 | CE114-65 | Front arm pin | 1 |
| 6 | RG18MTE.35 | Rodobal bearing | 1 |
| 7 | CE114-152 | Front Arm adaptor bushing | 1 |
| 8 | Seeger-SB35 | Seeger SB35 | 1 |
| 9 | Seeger-SB42 | Seeger SB42 | 1 |
| 10 | Front arm higher pin adapter | 1 | |
| 11 | NL14spss-254-Nord-Lock | NL14spss-254-Nord Lock | 1 |
| 12 | RM22XE.C0 | Rodobal Rod-end M22x1,5 | 1 |
| 13 | CE114-202 | Nut M22x1.5 | 2 |
| 14 | Hexagon-head-bolt-ISO-8676-M10x1.25x25 | Hexagon head bolt ISO 8676 M10x1.25x25 | 1 |
| 15 | CE114-155 | Front arm rear rod ISO 8765 - M14 | 2 |
| 16 | CE114-72 | Front arm RM22XE adapter | 1 |
| 17 | RG22SE42C0 | Rodoball Uniball High Misalignment | 1 |
| 18 | Front arm lower pin adapter lower | 1 | |
| 19 | Washer-UNI-8840-DIN-137-B10 | Washer UNI 8840 - DIN 137 - B10 | 1 |
| 20 | Washer-UNI-8840-DIN-137-B14 | Washer UNI 8840 - DIN 137 - B14 | 1 |
| Front anti-roll bar link ( CE114-109 ) - 2 pcs | |||
| pcs | |||
| 1 | CE113-202 | Rollbar link EVO | 1 |
| 2 | High Misalignment uniball | 2 | |
| 3 | Rollbar link ARYT7 adapter | 4 | |
Front subframe ( CE114-110 ) - 1 pcs
Rear subframe (CE114-119 ) - 1 pcs
| Rear Camber Arms ( CE114-115 ) - 2 pcs | |||
| pcs | |||
| 1 | CE114-177 | Camber rod adapter on frame | 2 |
| 2 | CE114-178 | Camber rod adapter on upright | 2 |
| 3 | RML16MTEx1,5 | Rod-end M16x1,5 LH | 1 |
| 4 | RM16MTEx1,5 | Rod-end M16x1,5 RH | 1 |
| 5 | CE114-181 | Nut M16x1.5 LH | 1 |
| 6 | CE114-180 | Nut M16x1.5 RH | 1 |
| 7 | CE114-162 | Complete camber rod | 1 |
| Rear Longitudinal Arm ( CE114-117 ) - 2 pcs | |||
| pcs | |||
| 1 | CE114-168 | Rear Fork on hub | 1 |
| 2 | RG14MTE.MM29 | Rodobal 29-14 | 1 |
| 3 | RM22XE.C0 | Rodobal M22x1,5 | 1 |
| 4 | CE114-186 | Complete longitudinal rod | 1 |
| 5 | CE114-182 | Longitudinal link adapter on frame | 2 |
| 6 | CE114-185 | Longitudinal link adapter on chassis | 2 |
| 9 | CE114-202 | Nut M22x1.5 | 1 |
| 10 | Seeger-SB29 | Seeger SB29 | 1 |
| Rear Toe Arm Assembly ( CE114-112 ) - 2 pcs | |||
| pcs | |||
| 1 | CE114-168 | Rear Fork on hub | 1 |
| 2 | RM16MTEx1,5 | Rodobal con gambo maschio M16x1,5 RH | 1 |
| 3 | RML16MTEx1,5 | Rodobal con gambo maschio M16x1,5 LH | 1 |
| 4 | CE114-177 | Camber rod adapter on frame | 2 |
| 5 | CE114-181 | Nut M16x1.5 LH | 1 |
| 6 | CE114-180 | Nut M16x1.5 RH | 1 |
| 7 | CE114-183 | toe rod adapter on upright | 2 |
| 8 | CE114-160 | Complete toe rod | 1 |
| Rear Upper Arm RH Assembly ( CE114-230 ) - 1 pcs | |||
| pcs | |||
| 1 | CE114-164 | Rear fork | 1 |
| 2 | CE114-182 | Longitudinal link adapter on frame | 2 |
| 3 | CE114-273 | Rear upper arm adapter on frame | 4 |
| 6 | CE114-118 | Upper rear A-arm RH | 1 |
| 7 | RG14MTE.MM29 | Rodobal 29-14 bearing | 3 |
| 8 | Seeger-SB29 | Seeger SB29 | 3 |
| Rear Upper Arm LH Assembly ( CE114-231 ) - 1 pcs | |||
| pcs | |||
| 1 | CE114-164 | Rear fork | 1 |
| 2 | CE114-182 | Longitudinal link adapter on frame | 2 |
| 3 | CE114-273 | Rear upper arm adapter on frame | 4 |
| 6 | CE114-114 | Upper rear A-arm LH | 1 |
| 7 | RG14MTE.MM29 | Rodobal 29-14 bearing | 3 |
| 8 | Seeger-SB29 | Seeger SB29 | 3 |
| Rear ARB link Assembly ( CE114-204 ) - 2 pcs | |||
| pcs | |||
| 1 | CE114-195 | Rear ARB rod | 1 |
| 2 | CE114-190 | Nut M12x1.25 LH | 1 |
| 3 | CE114-189 | Nut M12x1.25 | 1 |
| 4 | Rodobal M12x1.25 LH | 1 | |
| 5 | Rodobal M12x1.25 | 1 | |
| 6 | WAS-805-02 | Rollbar link adapter | 4 |
