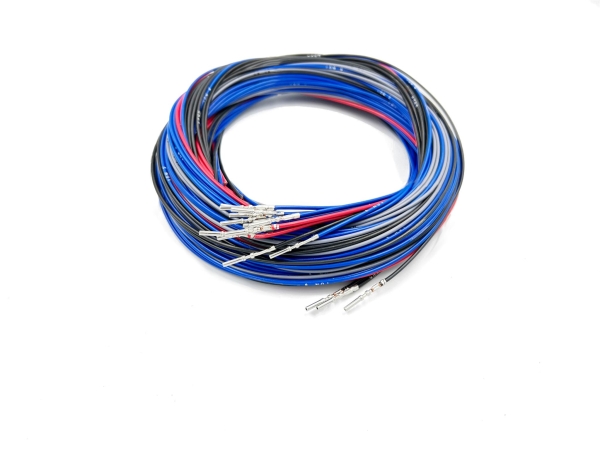

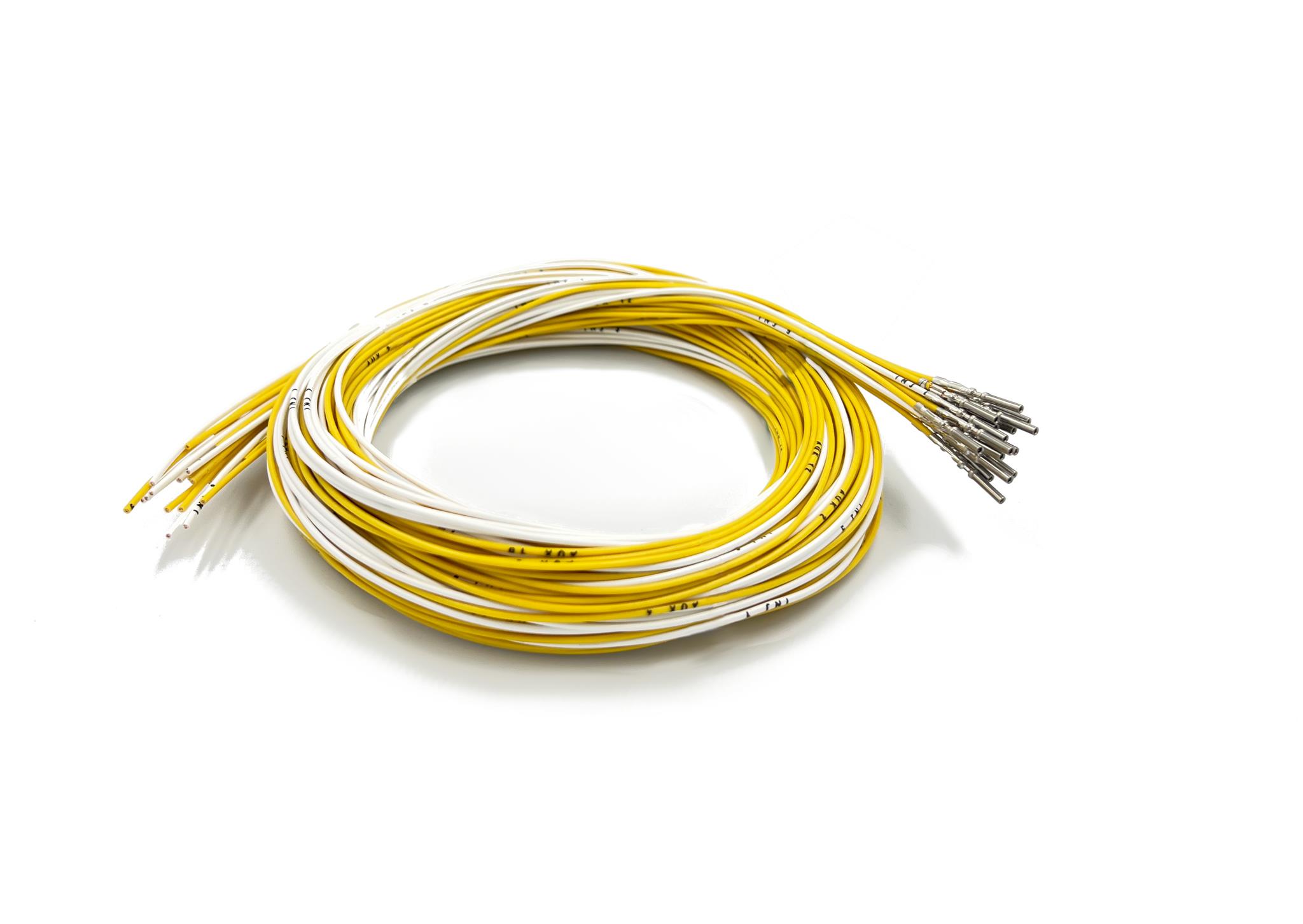

Universal pre-crimped harness dedicated for Ecumaster EMU PRO-8.
Wires are labeled.
The cables have different colours
length: 2,5m
plugs are not included
Spec:
Injectors - Bialy/White - 0,5mm^2 - 1x INJ1
Injectors - Bialy/White - 0,5mm^2 - 1x INJ2
Injectors - Bialy/White - 0,5mm^2 - 1x INJ3
Injectors - Bialy/White - 0,5mm^2 - 1x INJ4
Injectors - Bialy/White - 0,5mm^2 - 1x INJ5
Injectors - Bialy/White - 0,5mm^2 - 1x INJ6
Injectors - Bialy/White - 0,5mm^2 - 1x INJ7
Injectors - Bialy/White - 0,5mm^2 - 1x INJ8
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN1
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN2
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN3
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN4
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN5
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN6
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN7
Ignition - Niebieski/Blue - 0,75mm^2 - 1x IGN8
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX1
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX2
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX3
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX4
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX5
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX6
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX7
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX8
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX9
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX10
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX11
AUX - Żółty/Yellow - 0,5mm^2 - 1x AUX12
H-Bridge - Szary/Gray - 0,75mm^2 - 1x HB1A
H-Bridge - Szary/Gray - 0,75mm^2 - 1x HB2A
H-Bridge - Szary/Gray - 0,75mm^2 - 1x HB3A
H-Bridge - Szary/Gray - 0,75mm^2 - 1x HB1B
H-Bridge - Szary/Gray - 0,75mm^2 - 1x HB2B
H-Bridge - Szary/Gray - 0,75mm^2 - 1x HB3B
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN1
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN2
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN3
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN4
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN5
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN6
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN7
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN8
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN9
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN10
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN11
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN12
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN13
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN14
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN15
Analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIN16
Precision analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIP1
Precision analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIP2
Precision analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIP3
Precision analogs - Fioletowy/Purple - 0,35mm^2 - 1x AIP4
PGND - Czarny/Black - 0,75mm^2 - 1x PGND - C30
PGND - Czarny/Black - 0,75mm^2 - 1x PGND - A11
PGND - Czarny/Black - 0,75mm^2 - 1x PGND - A19
PGND - Czarny/Black - 1mm^2 - 1x PGND - A17
PGND - Czarny/Black - 1mm^2 - 1x PGND - B19
AGND, DGND - Brązowy/Brown - 0,35mm^2 - 3x GND
Digital - Zielony/Green - 0,35mm^2 - 1x DIG1
Digital - Zielony/Green - 0,35mm^2 - 1x DIG2
Digital - Zielony/Green - 0,35mm^2 - 1x DIG3
Digital - Zielony/Green - 0,35mm^2 - 1x DIG4
Digital - Zielony/Green - 0,35mm^2 - 1x DIG5
Digital - Zielony/Green - 0,35mm^2 - 1x DIG6
Digital - Zielony/Green - 0,35mm^2 - 1x DIG7
Digital - Zielony/Green - 0,35mm^2 - 1x DIG8
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB1IP
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB1VS
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB1RC
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB1VG
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB1HT
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB2IP
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB2VS
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB2RC
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB2VG
WBO - Żółto-Czarny/Black-Yellow - 0,35mm^2 - 1x WB2HT
+5V - Pomarańczowy/Orange - 0,35mm^2 - 2x +5VA
+5V - Pomarańczowy/Orange - 0,35mm^2 - 2x +5VB
+12V - Czerwony/Red - 1mm^2 - 2x +12V
+12V Switched - Czerwony/Red - 0,35mm^2 - 1x +12SW
CAN - Różowy/Pink - 0,35mm^2 - 1x CAN1L
CAN - Różowy/Pink - 0,35mm^2 - 1x CAN1H
CAN - Pink - 0,35mm^2 - 1x CAN2L
CAN - Pink - 0,35mm^2 - 1x CAN2H
LIN - Pink - 0,35mm^2 - 1x LIN
+
2x shielded wire raychem
